Analyzing Supply and Demand Using Point and Figure Charts

by Wayne A. Thorp, CFA

Analyzing Supply And Demand Using Point And Figure Charts Splash image

One of the basic principles of economics is the law of supply and demand. It states that when there are more buyers than there are sellers of a given good, the price should rise. Likewise, when there are more sellers than buyers, the price should fall. In this technical analysis article, we focus on a type of chart that attempts to capture the battle between supply and demand: the point and figure chart.

Point and figure charts have been in use for over 100 years, yet they exist in relative obscurity compared to bar charts and candlesticks. Their usefulness lies in their ability to filter out market “noise”—short-term price fluctuations that occur during longer, more established trends. They differ from the more conventional charts in that they ignore the passage of time and do not take trading volume into account—they are only affected by price movements.

Figure 1 is an example of a point and figure chart for Cisco Systems, which covers daily price movements for the period from January 4, 1999, through April 31, 1999. Immediately, you should see some significant differences from other charts. First, the chart is made up of columns of X’s and O’s. X’s represent rising prices while O’s represent falling prices. Put another way, X’s represent demand and O’s supply. The movement from columns of X’s to O’s and back again creates patterns that you may use to make buy and sell decisions.

In this article

Share this article

About the

Wayne A. Thorp is a vice president and the senior financial analyst at AAII and former editor of Computerized Investing. Follow him on Twitter at @WayneTAAII.
Wayne A. Thorp Profile
All Articles by Wayne A. Thorp

There are two key items you need to address before you can begin creating your own point and figure charts—the box size and reversal amount.

The box size is based on the scale you wish to use for a particular security or index and it represents the value given to each box (X or O) on the chart. It is the minimum price change needed to continue the trend—i.e., to add an X to the top of the column of X’s (or the minimum price decrease needed to add an O to the bottom of a column of O’s). The reason that this is even an issue is because a reversal of $3 for a $10 stock is more dramatic, on a different scale, than a $3 reversal on a $100 stock. Furthermore, since point and figure charts are used to filter out “noise” in the market, you will want to be sure that you are filtering out just enough to eliminate momentary price reversals, yet at the same time allow enough through so you can identify when a significant reversal is taking place.

As you use point and figure charts, you may find that different box sizes work better for your trading style or for a particular security. However, box sizes have traditionally been broken down into the following levels:





How you move from one column to another is key to your analysis of point and figure charts. The way in which you move to a new column is called the “reversal method.” The reversal amount determines how many boxes the price must reverse course in order to move to a new column and switch from X’s to O’s or O’s to X’s. While this can be left to the individual creating the chart, the typical reversal is the “three box” reversal, because it is thought to eliminate spurious price fluctuations and focus on only “significant” price movements.

If a stock were trading below $5, it would take a price move (up or down) of $0.75 to generate a three-box reversal. Based on the table on page 25, the box size for such a stock is $0.25; a three-box reversal would take three $0.25 price moves to necessitate a shift to a new column of either X’s or O’s. The same principle applies no matter the box size.

Having established the parameters for the essential elements of a point and figure chart, you must last look at exactly which price(s) you will use to plot your point and figure chart. “Purists” typically use the high and low prices for the period (day, week, month, etc.), while others may focus strictly on a single price such as the close. Depending on the price(s) you use, you may get different results. You may wish to experiment to find the technique that works best for you.

A key concept to remember when creating point and figure charts is that you remain in the same column of X’s or O’s as long as prices continue to rise or fall, respectively. In other words, if the chart was in a column of X’s and prices were rising, you would ask yourself each day whether the price rose one full box or more. You would find this out by looking at the high price for the day—again we are only concerned with the high and low prices, not the open or close. If the price did rise at least one box, let’s say from $50 to $51, you would add an X to the column in the $51 box ($1 per box, according to the table). At that point, you are done for the day. Be aware that as long as the price rises by at least one box, you do not care about what it did on the downside. In other words, if the high price for the day was $51 but the low price was $40, you would still only plot the one-box increase. You are only interested in one direction per period.

SPECIAL OFFER: Get AAII membership FREE for 30 days!
Get full access to, including our market-beating Model Stock Portfolio, currently outperforming the S&P 500 by 2-to-1. Plus 60 stock screens based on the winning strategies of legendary investors like Warren Start your trial now and get immediate access to our market-beating Model Stock Portfolio (beating the S&P 500 2-to-1) plus 60 stock screens based on the strategies of legendary investors like Warren Buffett and Benjamin Graham. PLUS get unbiased investor education with our award-winning AAII Journal, our comprehensive ETF Guide and more – FREE for 30 days

If, however, the next day the price did not rise by at least one box ($3), you must then decide whether the price reversed down by three or more boxes. In this case, was the low price for the day at least $48 ($51 – $3)? If it was not—let’s say the low price was $49—you are done for the day, not having plotted any price movement. This is unlike bar charts that will still plot a bar, even if prices do not move. When the price does finally reverse by three or more boxes—let’s say the low was $47—you shift one column to the right and begin plotting a column of O’s.

Figure 2 illustrates the process in action, using real price data for Cisco Systems from 6/1/00 through 6/27/00. The figures in bold indicate price reversals that generated a move to a new column on the chart.

How to Use Point & Figure

Now that we have gone through the process of creating a point and figure chart, the next step is to understand how to use this chart as part of your investment decision-making process. The main use of point and figure analysis involves trendline and chart patterns.

Trendlines are useful when examining any type of chart because they allow you to determine those price levels where buyers are willing to support a security by buying, as well as those areas where sellers depress the price by selling. With point and figure charts, drawing trendlines is easier than with other charts because much of the subjectivity is eliminated.

There are four different types of trendlines you can use with point and figure charts:

  • Bullish support,
  • Bullish resistance,
  • Bearish support, and
  • Bearish resistance.

The bullish support line is used to identify those stocks that are in an uptrend, and to alert you to potential reversals in an uptrend. As a rule of thumb, you should not buy stocks that are trading below their bullish support lines. To begin drawing the bullish support line, you first look for a long column of O’s, which indicates the stock has seen a “significant” drop in price. Once you have located such a column, place a “+” sign directly under the lowest O in the column. From there you move to the right and up one box, adding another “+” and repeat the process until you end up with a line that looks similar to the one that appears in Figure 3. As you can see, the line runs at a 45-degree angle and those stocks trading above this line are considered to be in a bullish trend.

The chart shows that the price followed the bullish support line from $30 up to $46, at which point the sellers took control as the price penetrated the line at $39, as indicated by the shaded box in the figure. When such a penetration takes place, you can reasonably assume that the upward trend has ended.

The bullish resistance line is constructed in a similar manner as the bullish support line, but its usefulness lies in alerting you to those price levels where stocks should meet selling pressure. To draw a bullish resistance line, you look for a “wall” of O’s—typically a downward move in the price from which it begins to bottom out. Looking again at Figure 3, such a formation is at the far-left of the chart. Moving one column to the right of this wall, you can begin constructing the bullish resistance line by placing a “+” at the top of the column of X’s, then moving up and over one box, adding another “+” and repeating. The bullish support and resistance lines serve to form a trading channel.

Bearish resistance lines are the reciprocal of bullish support lines. In Figure 3, you can see that you begin drawing the bearish resistance line in the column of X’s prior to the column of O’s that penetrates the bullish support line. Connecting the boxes diagonally downward, you create a line that is parallel to the bullish support line. Stocks trading below the bearish resistance line are viewed as being in a bearish trend and you can expect prices to meet strong resistance as they near this boundary.

Lastly, the bearish support line is the reciprocal of the bullish resistance line. To begin drawing this line, look for the first “wall” of X’s to the left of the bearish resistance line. The line that is formed by placing a “+” at the bottom of the column of X’s and moving diagonally downward can be used as a guide, telling you where to expect downward moving prices to meet resistance. In other words, prices would receive support at or near this line. Similar to the bullish lines, the bearish support and bearish resistance lines form a trading channel through which the stock can be expected to trade.

Typical patterns

One of the main objectives of technical and chart analysis is to identify trends in price and/or volume that may be used to predict future price movements. Some of the more popular and frequently occurring chart patterns are double tops and bottoms, as well as bullish and bearish triangles.

The double top and double bottom are two of the most common chart patterns that appear in most charts, especially point and figure. Figure 4 shows a double-top formation. Looking at the figure, you can see that this formation contains two columns of X’s separated by a column of O’s. The first column of X’s was created as buyers bid up the price from $32 to $36, at which point demand dried up. The next move is to a column of O’s, as sellers forced the price back down to $33. Here the price had fallen enough to spur interest once again, providing support at this level. Finally, there is a move to another column of X’s as buyers re-enter the market and again drive the price back to $36. At this point, several things could happen. First, the price could again meet resistance and reverse course. Alternatively, buyers could continue bidding up the price, pushing the price past $36. As the figure shows, if the price rises above $36, this is viewed as a bullish signal and a potential buy.

The double bottom is simply the double top turned upside down, and is shown in Figure 5. Here the formation is made up of two columns of O’s separated by a single column of X’s. In the first column of O’s, there are more sellers than there are buyers and the price falls to the equilibrium point between buyers and sellers. Here, the price falls from $37 to $33, at which point the price finds support and reverses to a column of X’s. In the column of X’s, buyers bid up the price to $36 until their demand was satisfied. The price meets resistance, forms a top, and falls once again. Once the price reaches $33, again it can take one of two courses—it could either reverse or continue its downward trek. If the price falls below $33, this would be a bearish sell signal.

Another typical point and figure pattern is triangles, both bearish and bullish. The hallmark of any triangle pattern is that, as prices fluctuate, higher lows and lower highs are created. Figure 6 illustrates a bullish triangle pattern. As you can see, as you move to the right, the highs become lower and the lows higher as the height of each column gets smaller and smaller. At this point, you have no idea which way the price may go if it were to break out of the formation, meaning you must wait for the pattern to be confirmed before entering your trade. As it plays out in Figure 6, the bullish triangle forms a double top at $36 and generates a buy signal when the price crosses above $36 and breaks out of the triangle pattern. If the price were to reverse itself, however, you should still pay close attention, because there is the possibility of a double bottom forming—a potential sell signal.

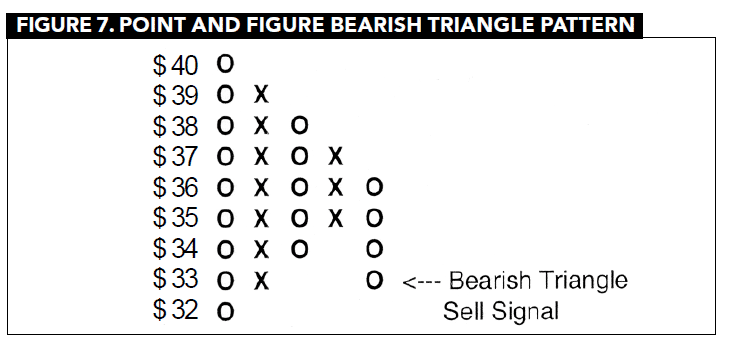

Figure 7 shows a bearish triangle, which looks the same as a bullish triangle except for the fact that the price breaks out to the downside. Here, it is the formation of the double bottom at $34 that signals the potential formation of a bearish triangle. The signal is confirmed when the price falls below $33.

Of course, there are many variations on the patterns shown here.

Overall, the formation of a triangle, with its series of lower lows and higher highs, signals the potential that prices will ‘break out.” The formation of a double top or double bottom gives an indication of the direction of the breakout.


Point and figure charts are an interesting way of examining the basic economic principle of supply and demand. By eliminating the time element from the chart, you are left to focus strictly on price movements. By using reversal methods such as the three-point reversal, you are also able to filter out the market noise that can sometimes generate false information regarding trend reversals.

Taking point and figure analysis one step further, some relatively basic principles, such as trendlines as well as pattern formations such as tops, bottoms, and triangles, can be helpful in gauging buy and sell decisions.
